In the dynamic realm of construction and industrial maintenance, ensuring worker safety and operational efficiency at elevated heights remains a paramount challenge. Among the diverse array of scaffolding systems designed to address this need, H Frame scaffolding has emerged as a cornerstone solution, renowned for its structural integrity, adaptability, and cost-effectiveness. This article delves into the technical composition, operational advantages, and global applications of H Frame scaffolding, underscoring its indispensable role in modern infrastructure projects.

Structural Composition: The Foundation of Stability

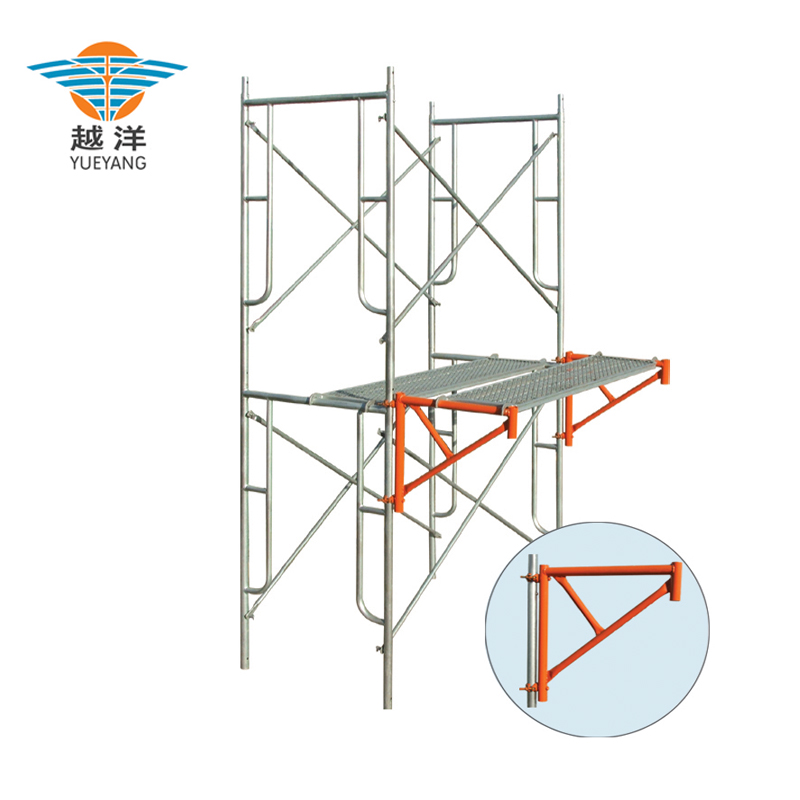

H Frame scaffolding derives its name from its signature vertical frames shaped like the letter "H." These frames, typically fabricated from high-grade steel or aluminum, serve as the primary load-bearing components. Each frame consists of two vertical tubes connected by horizontal crossbars at the top and bottom, forming a rigid rectangular structure. The system is further reinforced by horizontal ledgers and diagonal braces, which interlock with the frames to create a lattice-like network. This modular design enables rapid assembly and disassembly, with components such as adjustable base jacks, metal planks, and guardrails enhancing safety and functionality.

Technical specifications vary based on project requirements. For instance, standard H frames often feature a height of 2 meters and a width of 1.2–1.5 meters, with tube diameters ranging from 42mm to 48mm and wall thicknesses of 2.2–3.0mm. Cross braces, typically made of lighter tubes, connect adjacent frames to distribute loads evenly and prevent lateral movement. The choice of material—steel for heavy-duty industrial projects or aluminum for lightweight, corrosion-resistant applications—reflects the system’s versatility across diverse environments.

Key Advantages: Why H Frame Scaffolding Stands Out

1.Ease of Assembly and Disassembly

The modular nature of H Frame scaffolding allows crews to erect or dismantle structures swiftly, reducing labor costs and project timelines. Components are designed for intuitive interlocking, eliminating the need for specialized tools. A single team can assemble a multi-level scaffold in hours, a critical advantage for time-sensitive projects like high-rise construction or emergency repairs.

2.Unmatched Stability and Load Capacity

The "H" shape ensures balanced weight distribution, minimizing swaying even under heavy loads or high winds. This stability is further enhanced by diagonal braces, which create triangular bracing patterns known for their resistance to deformation. Studies indicate that H Frame systems can safely support loads exceeding 500 kg per square meter, making them suitable for transporting construction materials and accommodating multiple workers simultaneously.

3.Cost-Effectiveness and Durability

Compared to traditional scaffolding methods, H Frame systems require fewer components and less maintenance. Steel variants, while heavier, offer longevity in harsh environments, while aluminum frames reduce transportation costs due to their lightweight nature. The reusability of components across projects further lowers lifecycle expenses, positioning H Frame scaffolding as a sustainable investment.

4.Safety and Compliance

H Frame scaffolding adheres to international safety standards such as OSHA (Occupational Safety and Health Administration) and EN (European Norms). Features like adjustable base jacks compensate for uneven terrain, while guardrails and toe boards prevent falls. Regular load testing and inspections ensure structural integrity, reducing accident risks in high-risk sectors like bridge maintenance or industrial plant overhauls.

5.Adaptability to Complex Environments

The system’s modular design allows customization for irregularly shaped structures. For example, in bridge construction, H Frame scaffolding can be configured to curve around arches or span wide gaps using extended ledgers. Similarly, in industrial settings, it can be integrated with hoisting systems to lift heavy equipment to elevated workstations.

Global Applications: From Skyscrapers to Industrial Sites

H Frame scaffolding’s versatility has cemented its status as a global staple across industries:

High-Rise Construction: Used for facade work, window installation, and concrete pouring, H Frame systems provide stable platforms at heights exceeding 100 meters.

Infrastructure Maintenance: Bridges, dams, and tunnels rely on H Frame scaffolding for inspection and repair tasks, where stability is critical for worker safety.

Industrial Projects: In petrochemical plants or power stations, the system supports equipment maintenance in confined spaces with high load requirements.

Event Staging: Temporary structures for concerts or exhibitions utilize H Frame scaffolding for its rapid deployment and aesthetic flexibility.

A notable case study involves the construction of the Shanghai Tower in China, where H Frame scaffolding enabled crews to work efficiently on the building’s curved facade at heights of 632 meters. Similarly, in the UK, Crossrail’s tunnel renovations leveraged H Frame systems to access narrow underground passages safely.

Conclusion: The Future of Elevated Work Solutions

H Frame scaffolding represents a fusion of engineering precision and practical innovation, addressing the core challenges of safety, efficiency, and adaptability in elevated work environments. Its modular design, coupled with robust material choices, ensures relevance across industries, from urban skyscrapers to remote industrial sites. As global construction demands surge—driven by urbanization and infrastructure modernization—H Frame scaffolding will continue to evolve, integrating smart technologies like IoT sensors for real-time structural monitoring or AI-driven assembly optimization. For contractors and engineers seeking a reliable, scalable, and safe scaffolding solution, H Frame scaffolding remains an unparalleled choice, embodying the principles of progress and protection in every frame.
